Badger RRK-UPA12

The 1st All-Trades Retrofit Universal Seismic Bracing Kit for Rigid Bracing using All Threaded Rod and EMT Conduit

The most cost-effective and user-friendly seismic bracing kit for suspended single hanger, trapeze or equipment bracing applications

• Uses (ATR) All Threaded Rod or EMT Conduit as the rigid brace arm
• Can be assembled with a battery drill / impact nut driver
• Visual Inspection Compliant

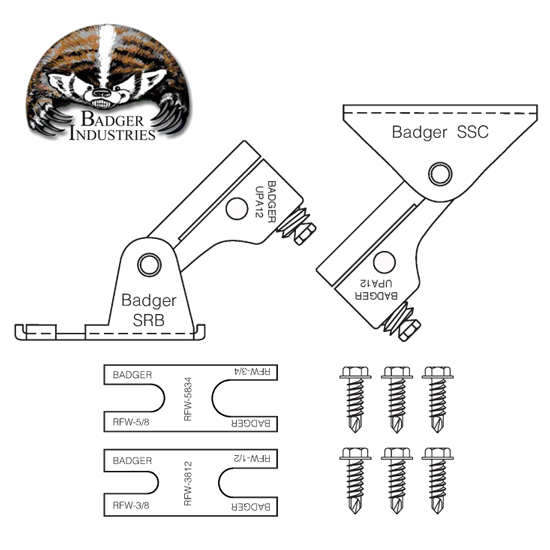

Each Kit Contains:

• (1) Upper Connection Bracket with 1/2" and 5/8" holes for use with concrete anchors or bolted connections
• (1) Lower Connection Bracket with Retrofit Washers sized to fit 3/8", 1/2", 5/8" and 3/4" diameter All Threaded Rods
• (2) Torque-Off Set Bolts for connection of All Threaded Rod brace arms
• (6) Self-Tapping Screws for connection of EMT Conduit brace arms
