NDH3812

Contractor Pricing  Regular price $439.40  per box of 20
Free Shipping    Sold in Boxes of 20, Price $21.97 Each
NDH3812
NDH3812
MDH3812 Installed Underside of Metal Decking fits multiple threaded rod / bolt sizes

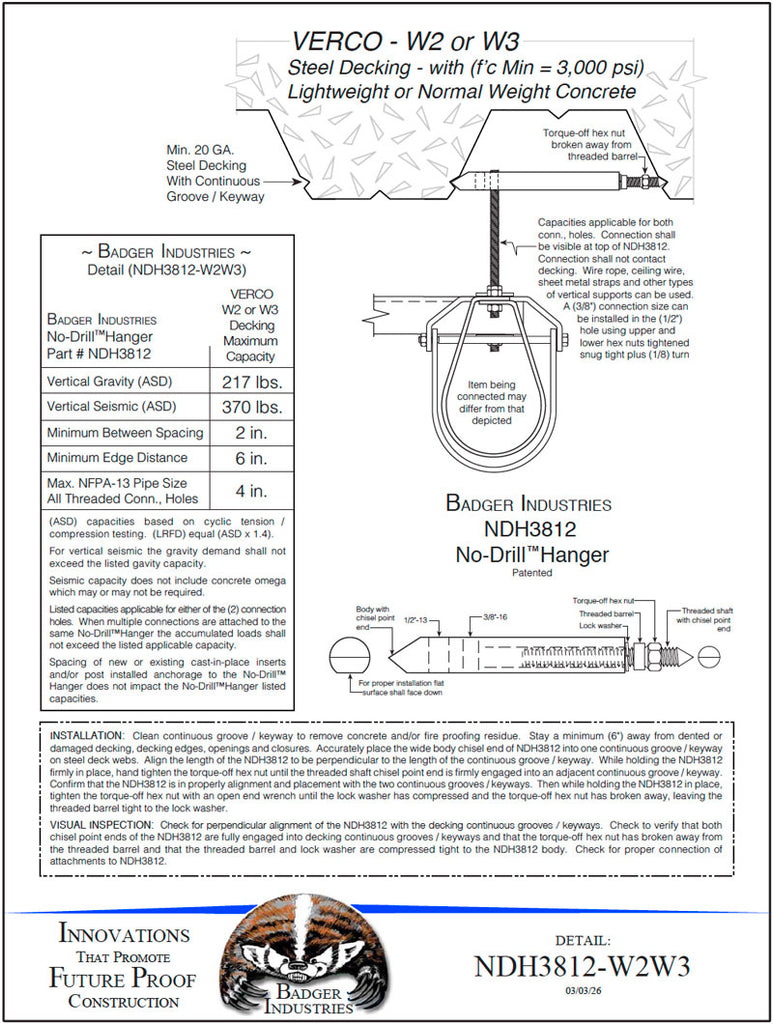

Technical diagram and specifications for a steel decking system with Verco and Badger Industries product NDH3812.

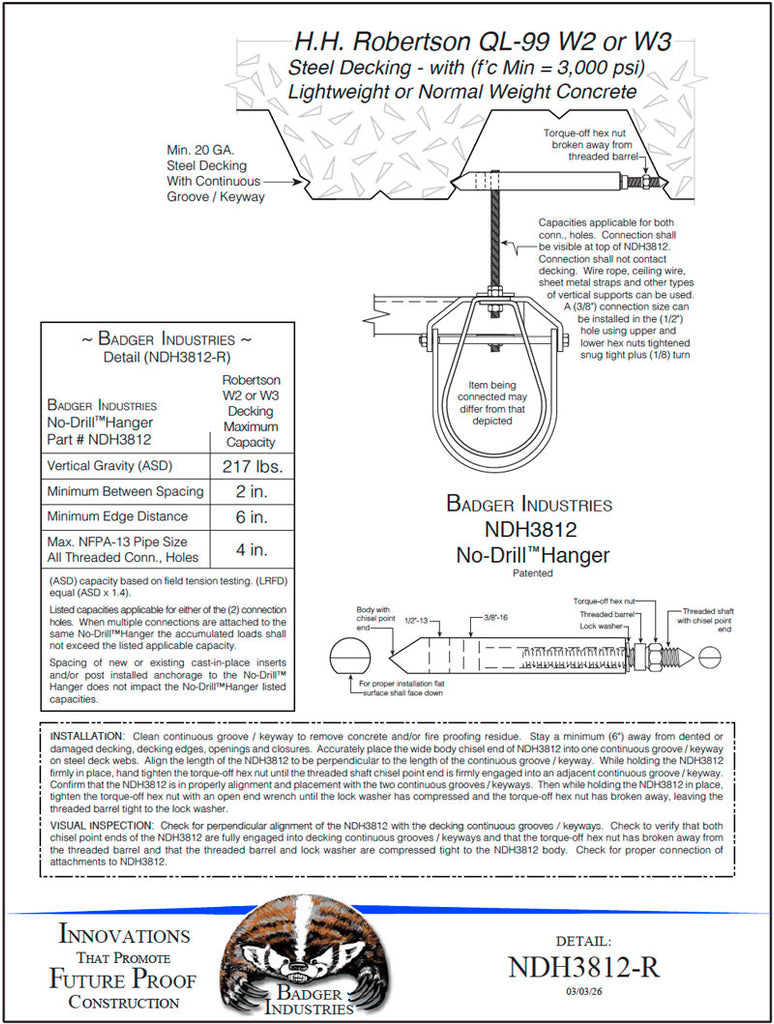

Technical diagram of a steel deck hanger system with specifications and installation of Badger Industries NDH3812.

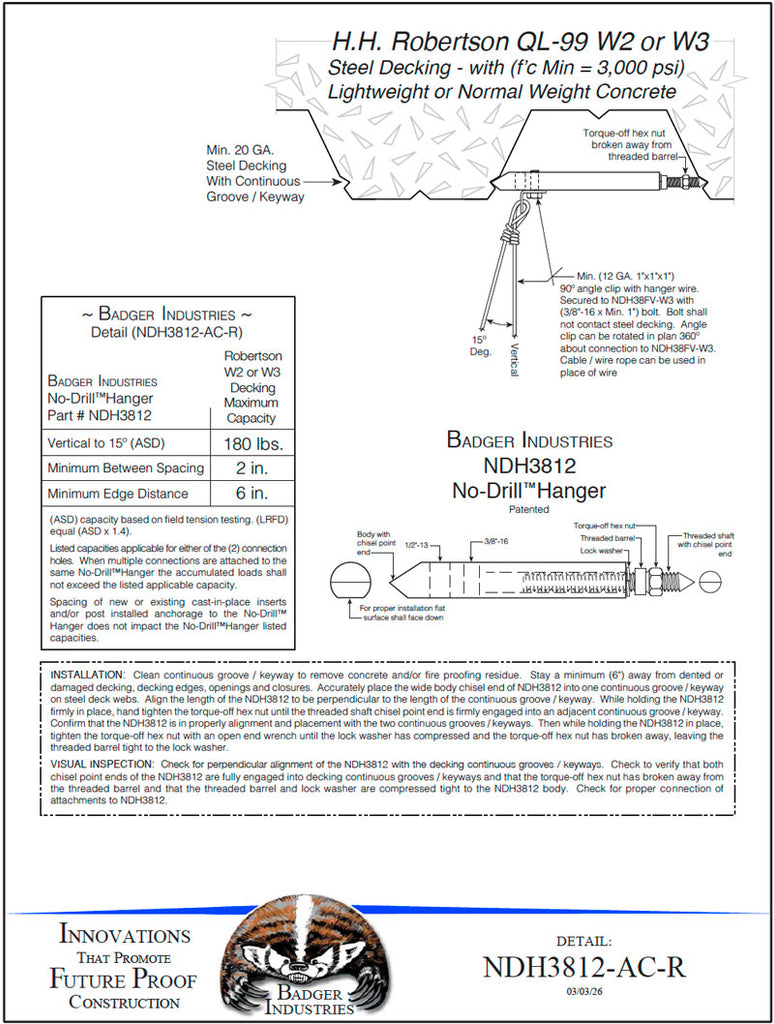

Technical diagram of a H.H. Robertson QL-99 W2 or W3 steel hanger system with installation of Badger NDH3812.

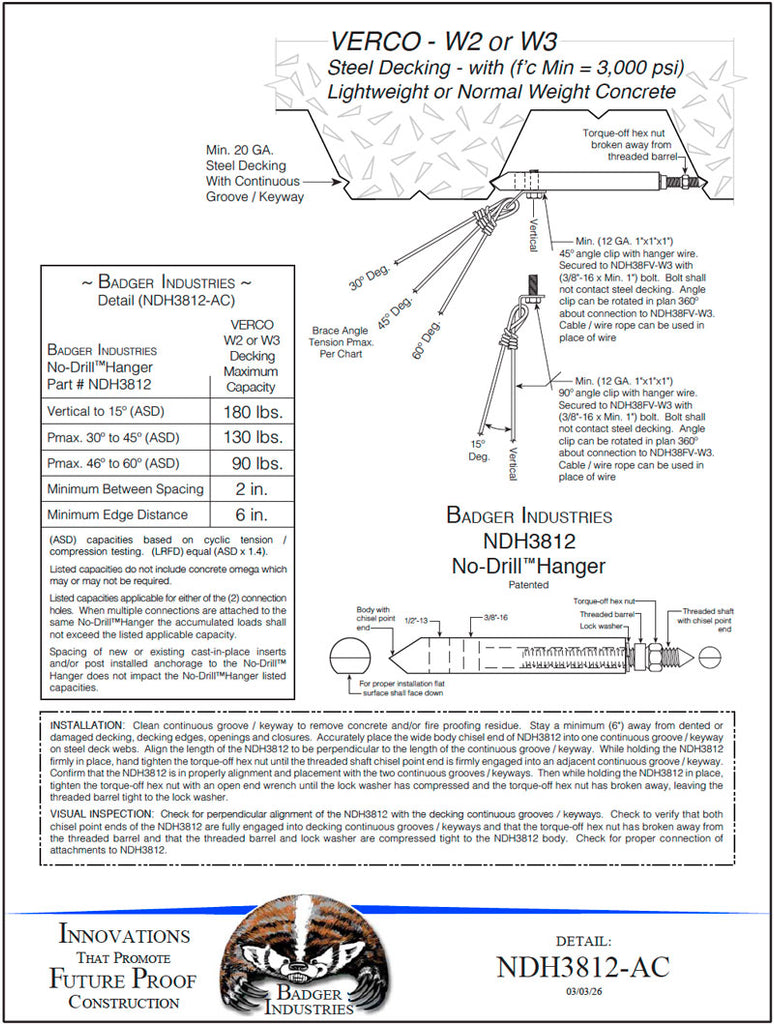

Technical diagram of steel decking with Badger Industries No-Drill Hanger NDH3812 installation.
Quantity: (Boxes of 20)
Each Order Qty of 1 = 1 Box of 20

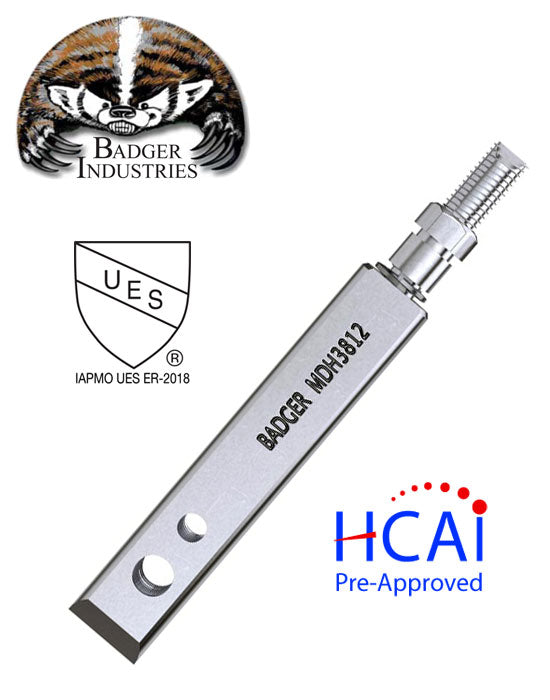

NO-DRILL™ HANGER

Mfg Part #: NDH3812

Part # MDH3812 name changed to NDH3812

The world's first NO-DRILL™ HANGER system for connections to the underside of grooved concrete filled composite steel decking.

The ULTIMATE way to reduce your construction schedule time and cost.

Same part fits 2" and 3" deep concrete filled composite steel decking with a continuous groove / keyway in its web profiles, such as Verco brand W2, W3 FORMLOK™, PLW2, PLW3, and H.H. Robertson QL-99 W2 or W3.


  • Can be used for 3/8" or 1/2" threaded connections, and ceiling wire or aircraft cable
  • Visual Inspection Compliant
  • HCAI Pre-Approved
  • NFPA-13 Compliant
  • IBC / CBC Compliant
  • No Drilling
  • No Noise
  • No Hepa Vacs
  • No Hazardous Silica Dust
  • Removable
